Zirconia Type Oxygen Analyzers (O2 Meters)
LP-30
Features
- Direct insertion into the furnace eliminates the need for sampling piping or pretreatment equipment
- Durable design enables measurement in harsh environments such as shredders and waste treatment facilities
- Equipped with automatic calibration for simplified maintenance
Usage
- Combustion control for small- and medium-sized boilers, and oxygen concentration monitoring inside shredders
Specifications
| Model | LP-30HD101 (LP-30H Probe Transmitter + DGO-101 Receiver) | |
|---|---|---|
| Measuring Principle | Zirconia type concentration cell method | |
| Sampling Method | Direct insertion | |
| Measuring Range | 0–10 / 0–25% | |
| Accuracy | Repeatability | ±0.5% FS |
| Linearity | ±2% FS | |
| Response Time | ≤10 seconds (90% response when switching calibration gas) | |
| Analog Output | DC 4–20 mA, isolated output, load resistance ≤600 Ω | |
| Calibration | Two-point zero/span calibration (Standard gas to be supplied by user) | |
| Contact Input |
Voltage-free contacts Number of contacts: 5 inputs Selectable functions: Calibration start / Purge start / Range switching / MFT input / Timer reset |
|
| Contact Output |
Voltage-free relay contacts (AC 250 V 1 A / DC 30 V 1 A, resistive load) Number of contacts: 5 outputs Selectable functions: Analyzer fault / H range / High concentration alarm / Low concentration alarm / Under maintenance / Air cal. / Span cal. / Zero cal. / Purge / High-low concentration alarm |
|
| Other Functions | First-order lag calculation / Output hold / High-low concentration alarm / Self-diagnostics | |
| Utility | AC 100 V ±10%, 50/60 Hz, 300 VA | |
| Probe Insertion Length | 0.5 / 1.0 / 1.5 m | |
| Air Switching Unit |
Automatic calibration available when combined with DGO-101 Receiver (Flowmeter and solenoid valve for reference air supply integrated in unit) |
|
Resources
Instruction Manuals
-

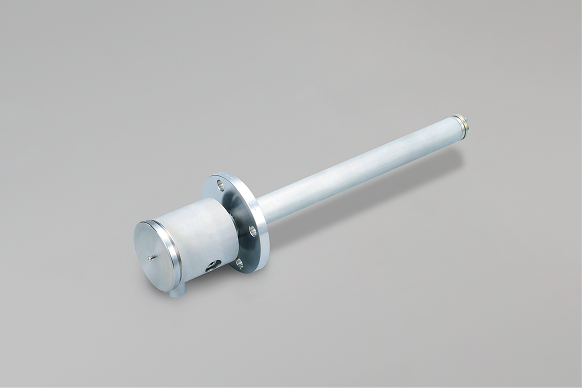

LP-30H Probe Transmitter
LP-30H KS-16300* (JPN) (1,523KB)
LP-30H KS-16300* (ENG) (1,594KB)
-

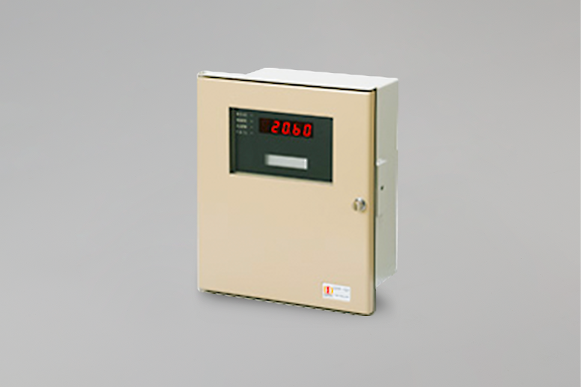

DGO-101 Receiver
