Zirconia Type Oxygen Analyzers (O2 Meters)
MLP-10
Features
- Supports multipoint measurement (up to 4 sensors per probe)
- Designed for large boilers (probe length ≥ 500 mm)
- Direct furnace insertion eliminates the need for sampling piping or pretreatment equipment
Usage
- Combustion control of large industrial boilers
Specifications
| Model | MLP-10D201 (MLP-10 Probe Transmitter + DGO-201 Receiver) | |
|---|---|---|
| Measuring Principle | Zirconia type concentration cell method | |
| Sampling Method | Direct insertion | |
| Measuring Range | 0–10 / 0–25% | |
| Accuracy | Repeatability | ±0.5% FS |
| Linearity | ±2% FS | |
| Response Time | ≤10 seconds (90% response when switching calibration gas) | |
| Analog Output | DC 4–20 mA, isolated output, load resistance ≤600 Ω | |
| Calibration | Two-point zero/span calibration (Standard gas to be supplied by user) | |
| Main Functions | Up to 4 measurement points / Averaging / Outlier-excluded averaging / First-order lag calculation / Output hold / WET-DRY calculation / Self-diagnostics / Automatic calibration | |
Resources
Instruction Manuals
-

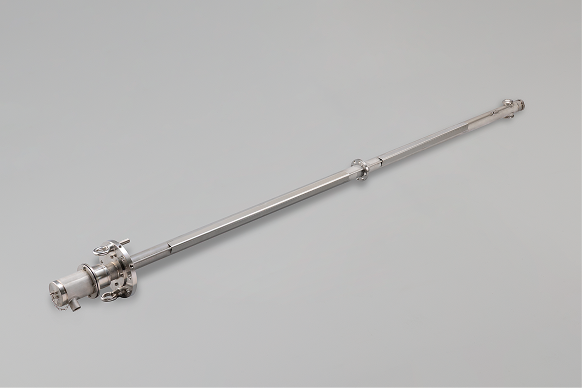

MLP-10 Probe Transmitter
-

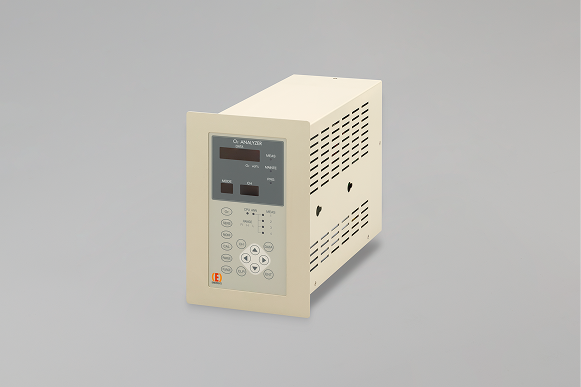

DGO-201 Receiver
