Zirconia Type Oxygen Analyzers (O2 Meters)
TF-IV
Features
- Designed for harsh combustion flue gas conditions, including high-temperature exhaust gas
- Direct furnace wall mounting eliminates the need for sampling piping or pretreatment equipment
- No standard gas or reference air required (Calibration can be performed using air-point calibration)
Usage
- Waste incinerators and sludge incinerators (combustion monitoring and control at outlet)
- Melting furnaces (combustion monitoring and control at outlet)
Specifications
| Model | TF-IVD102 (TF-IV Transmitter + DTF-102 Receiver) | |
|---|---|---|
| Measuring Principle | Zirconia type limiting current method | |
| Sampling Method | Direct furnace wall mounting / differential pressure suction | |
| Measuring Range | 0–5 / 0–10 / 0–25% O2 (System data change required for 0–5% range) | |
| Accuracy | Repeatability | ±1% FS (0–5% range), ±0.5% FS (0–10 / 0–25% range) |
| Linearity | ±2% FS (0–5% range), ±1% FS (0–10 / 0–25% range) | |
| Response Time | ≤10 seconds (90% response when switching calibration gas) | |
| Output | DC 4–20 mA, isolated output, load resistance ≤500 Ω | |
| Calibration | Air-point calibration (no standard gas required) | |
| Contact Input |
Voltage-free contacts Number of contacts: 3 inputs Selectable functions: Calibration start / Purge start / Range switching / Output hold / Sleep mode |
|
| Contact Output |
Voltage-free relay contacts (AC 250 V 1 A / DC 30 V 1 A, resistive load) Number of contacts: 4 outputs Selectable functions: Analyzer fault / H range / High concentration alarm / Low concentration alarm / Ready (normal measurement) / Under maintenance / Air cal. / Span cal. / Zero cal. / Purge / Air cal. or Purge / High-low concentration alarm / Analyzer fault or High-low concentration alarm |
|
| Power Supply | AC 100 V ±10%, 50/60 Hz, 500 VA | |
| Air Supply |
Instrument air equivalent Pressure: 0.4–0.7 MPa(G) During calibration: 3 L/min During purge: 0.5 Nm³/min |
|
| Measured Gas Conditions* | Temperature | ≤900 °C |
| External Dimensions | Transmitter Body | 188 (W) × 207 (H) × 165 (D) (excluding protrusions) |
| Mounting Flange | JIS 10K 65AFF (Contact us for other sizes) | |
| Weight | Transmitter body: approx. 10 kg; Probe (L = 1,000 mm, pair): 2.4 kg | |
* Please consult us for other gas conditions.
Resources
Instruction Manuals
-

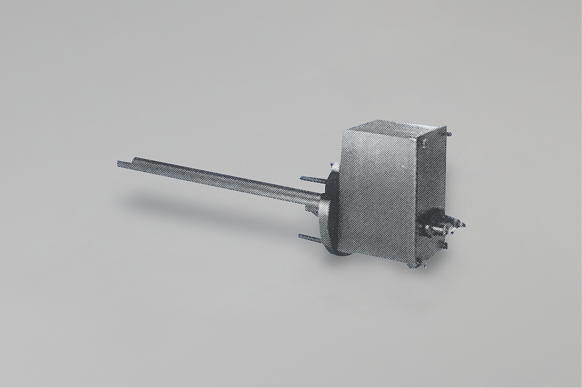

TF-IV Transmitter
-

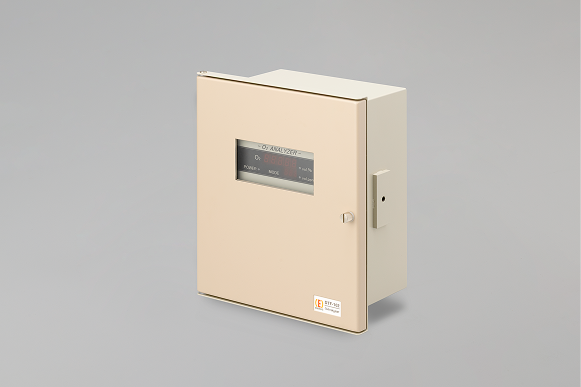

DTF-102 Receiver
