Zirconia Type Oxygen Analyzers (O2 Meters)
TF-SD201R
Features
- Sensors and receiver can be installed at desired locations
- Lightweight and compact design allows easy integration into various systems
- No standard gas or reference air required (Calibration can be performed using air-point calibration)
- Enables measurement in reducing atmospheres with an air ratio below 1
- Also available as a complete analyzer with an integrated sampling mechanism
Usage
- Oxidizing combustion flue gas oxygen concentration measurement
-
- Small- and medium-sized boilers
- Small- and medium-sized industrial heating furnaces
- Coke ovens
- Heat treatment furnaces (radiant tube furnaces)
- Reducing combustion flue gas atmosphere concentration measurement
-
- Ceramic kilns (shuttle kilns)
- Ceramic kilns (tunnel kilns)
- Ceramic raw material firing furnaces (rotary kilns)
Specifications
| Model | TF-SD201R (AS-210 Sensor + DTF-201R Receiver) | |
|---|---|---|
| Measuring Principle | Zirconia type limiting current method | |
| Measuring Range | 0-5, 10, 25% / −15 to 25, −6 to 10, −3 to 5% | |
| Accuracy | Repeatability | ±1% FS (0–5% and negative ranges), ±0.5% FS (0–10 / 0–25% range) |
| Linearity | ±2% FS (0–5% and negative ranges), ±1% FS (0–10 / 0–25% range) | |
| Analog Output | 1st Output | DC 4–20 mA, non-isolated output, load resistance ≤600 Ω |
| 2nd Output | DC 0–1 V / DC 0–5 V / DC 0–10 V, selectable (non-isolated output) | |
| Response Time | ≤10 seconds (90% response when switching calibration gas) | |
| Alarm Display | Error codes displayed on receiver | |
| Warm-up Time | 3 minutes | |
| Power Supply | AC 100–240 V, 50/60 Hz, 50 VA | |
| External Dimensions | 96 (W) × 96 (H) × 170 (D) (Receiver) | |
Resources
Instruction Manuals
-

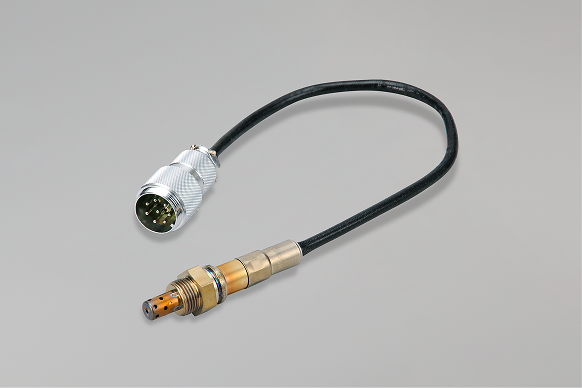

AS-210 Sensor
-

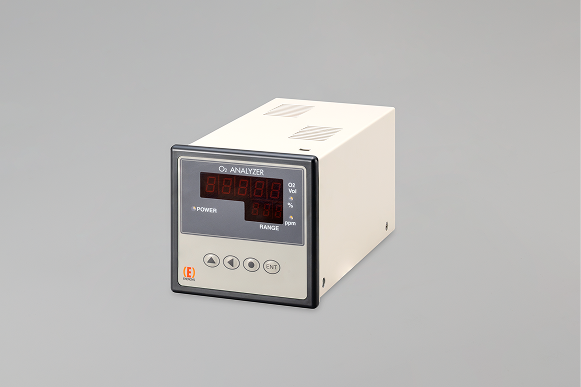

DTF-201R Receiver
